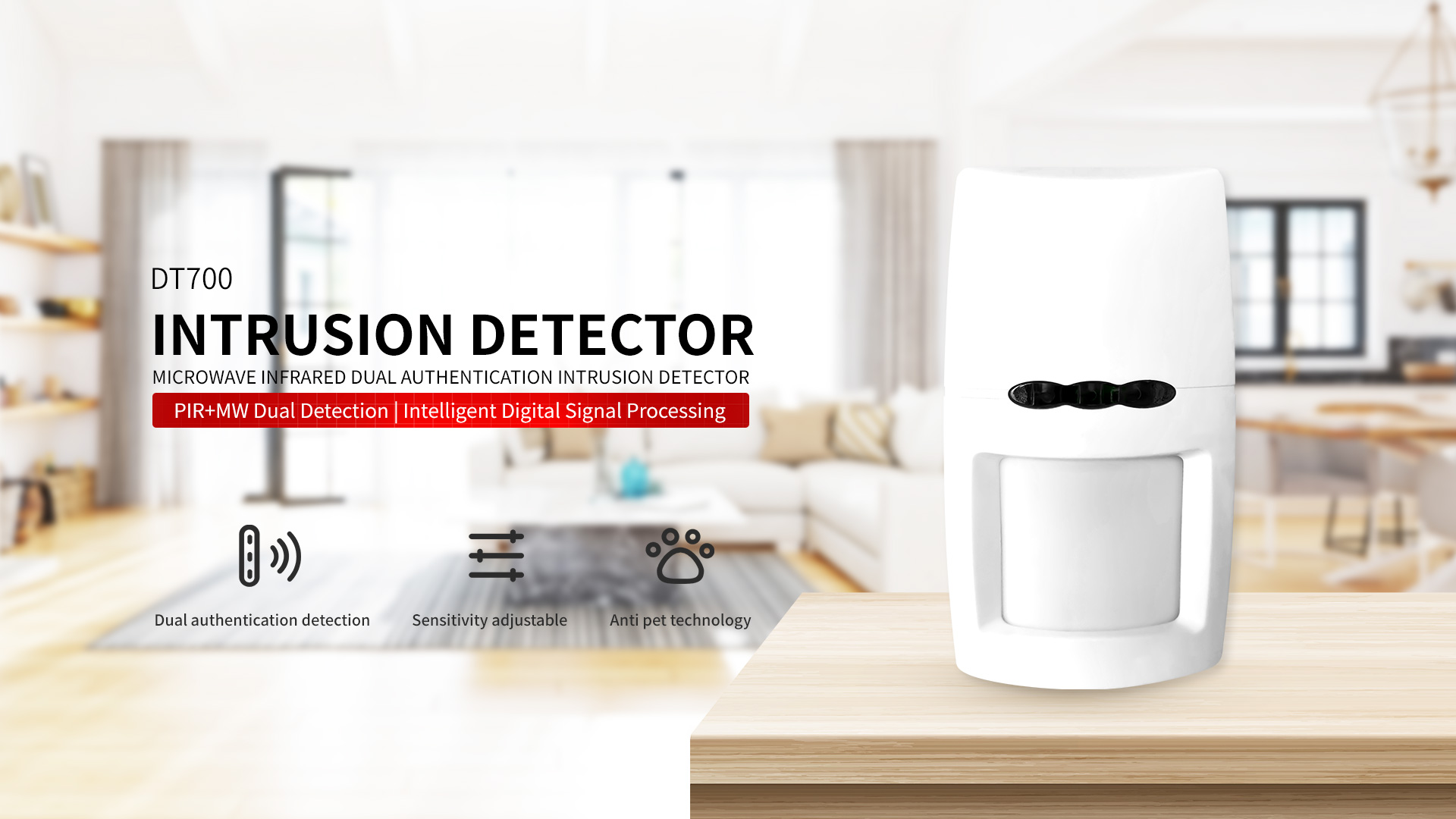

DT700 Microwave Dual Infrared Detector
Product features:
K-Band technology can further suppress false alarms and improve sensitivity.

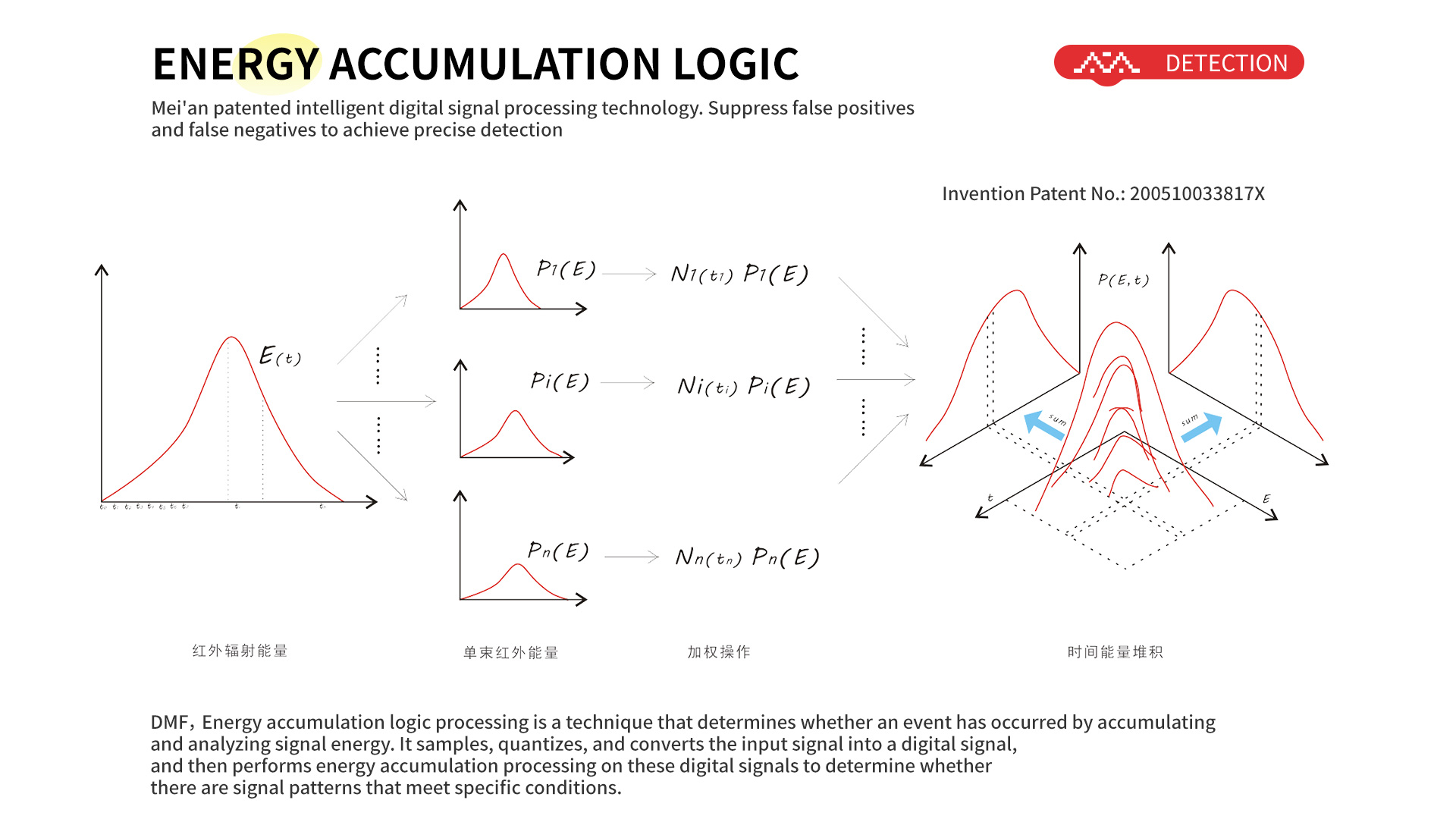

Adopting a self-developed DSP chip with energy stacking technology.

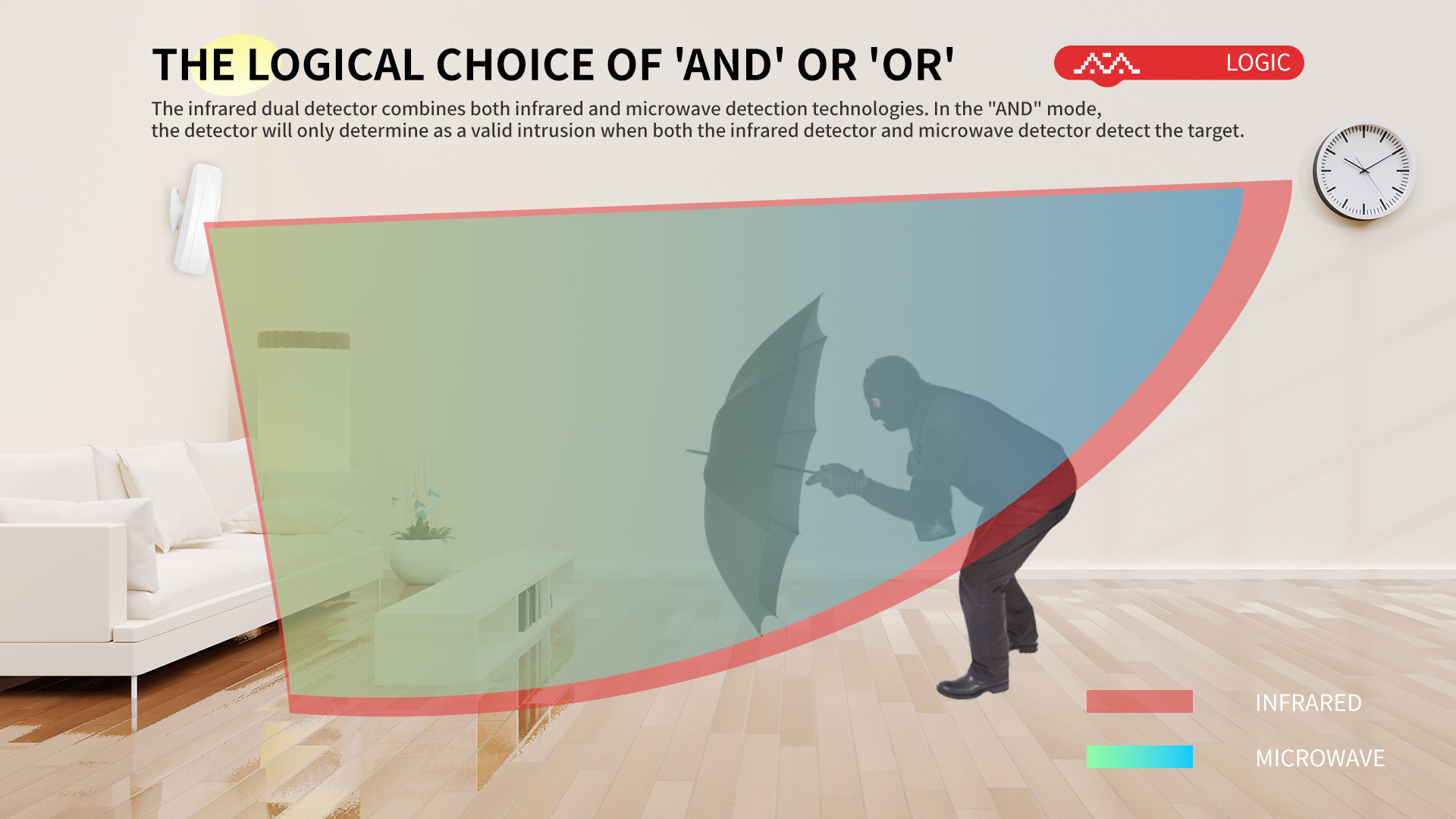

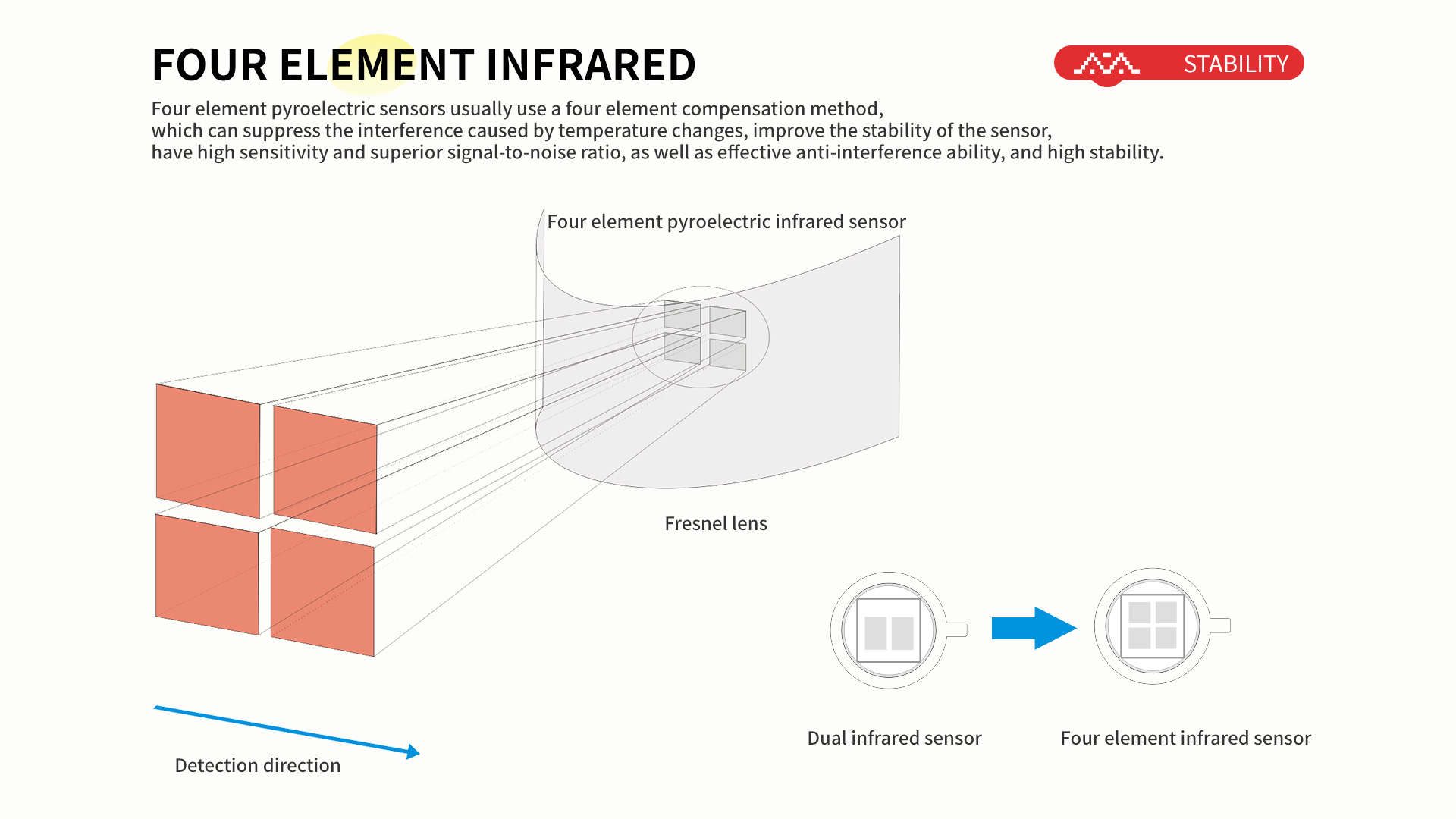

Dual passive infrared+microwave+energy analysis.

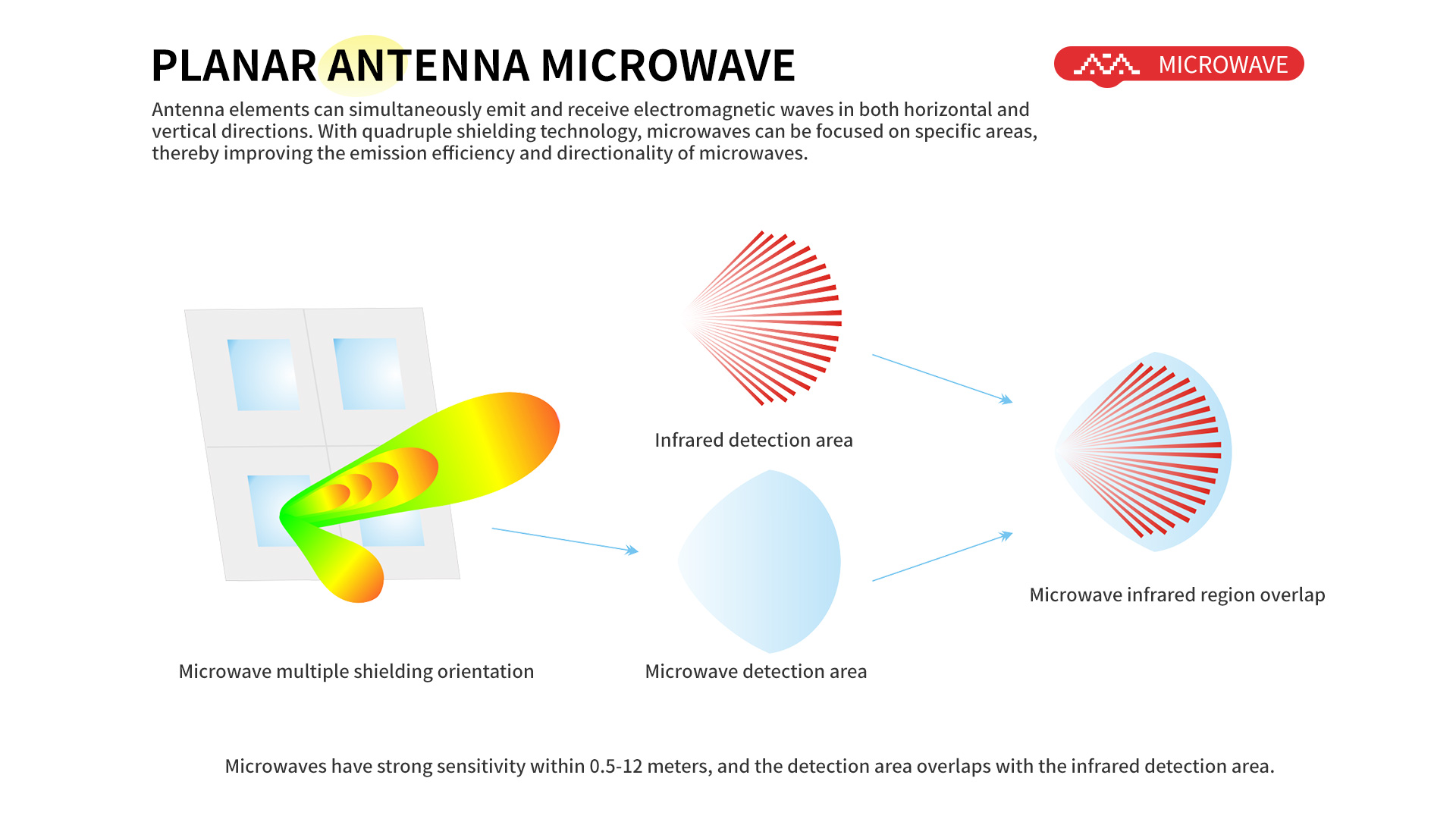

Adopting visual field shaping technology to ensure good matching between microwave and infrared visual fields.
Specialized lens for UV resistance.
Can prevent pets weighing less than 30kg.
Adaptive detection threshold technology effectively eliminates external interference.

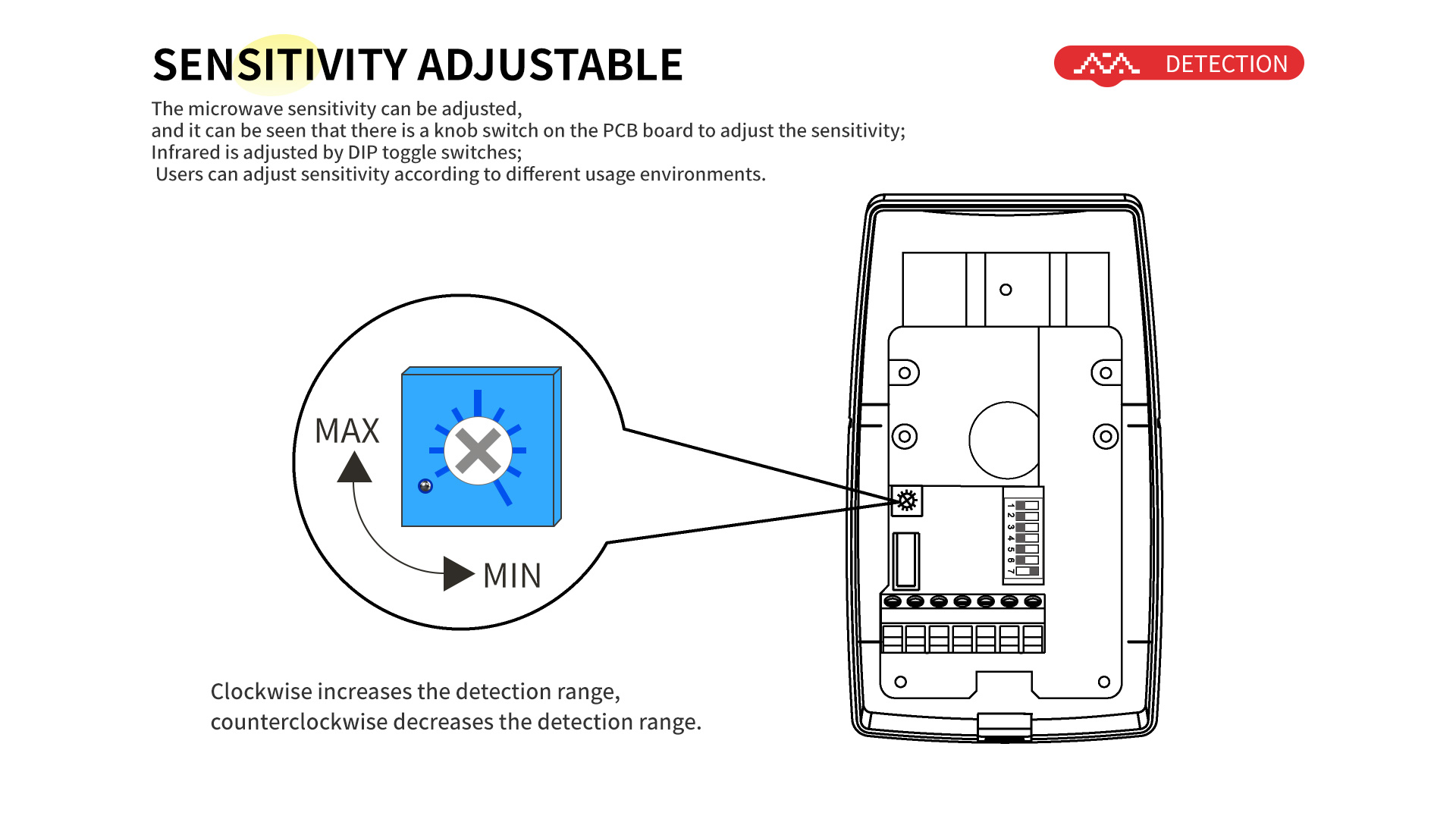

Multi level sensitivity adjustable.
Technical parameters:
PRODUCT MODEL
DT700 indoor dual sensor outdoor detector
Detection method： Dual infrared and microwave detection technology
static current：8mA
alarm current:25mA

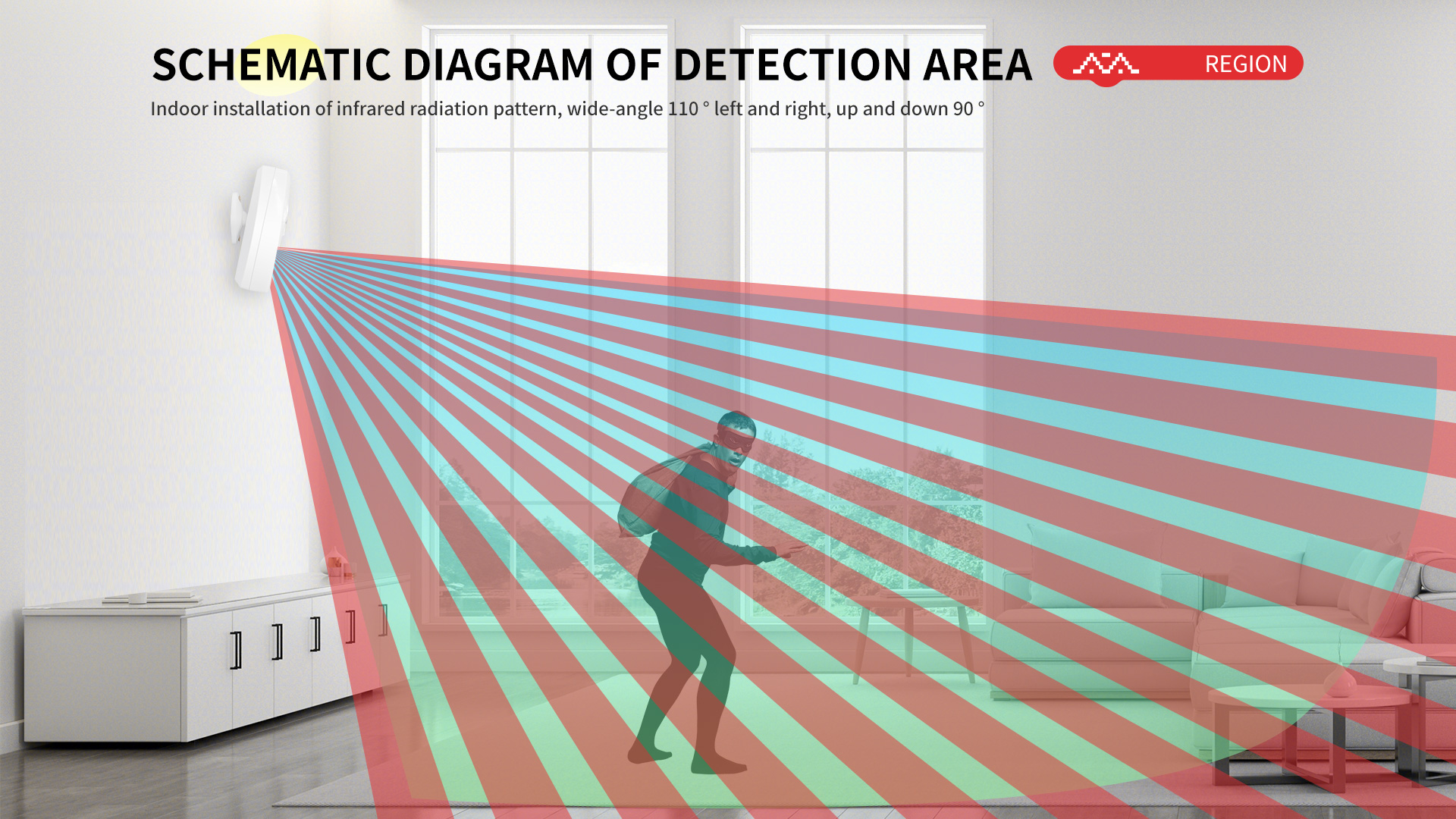

Detection area:22+12+6+4=44
Detection range:12 meters @ 25 °

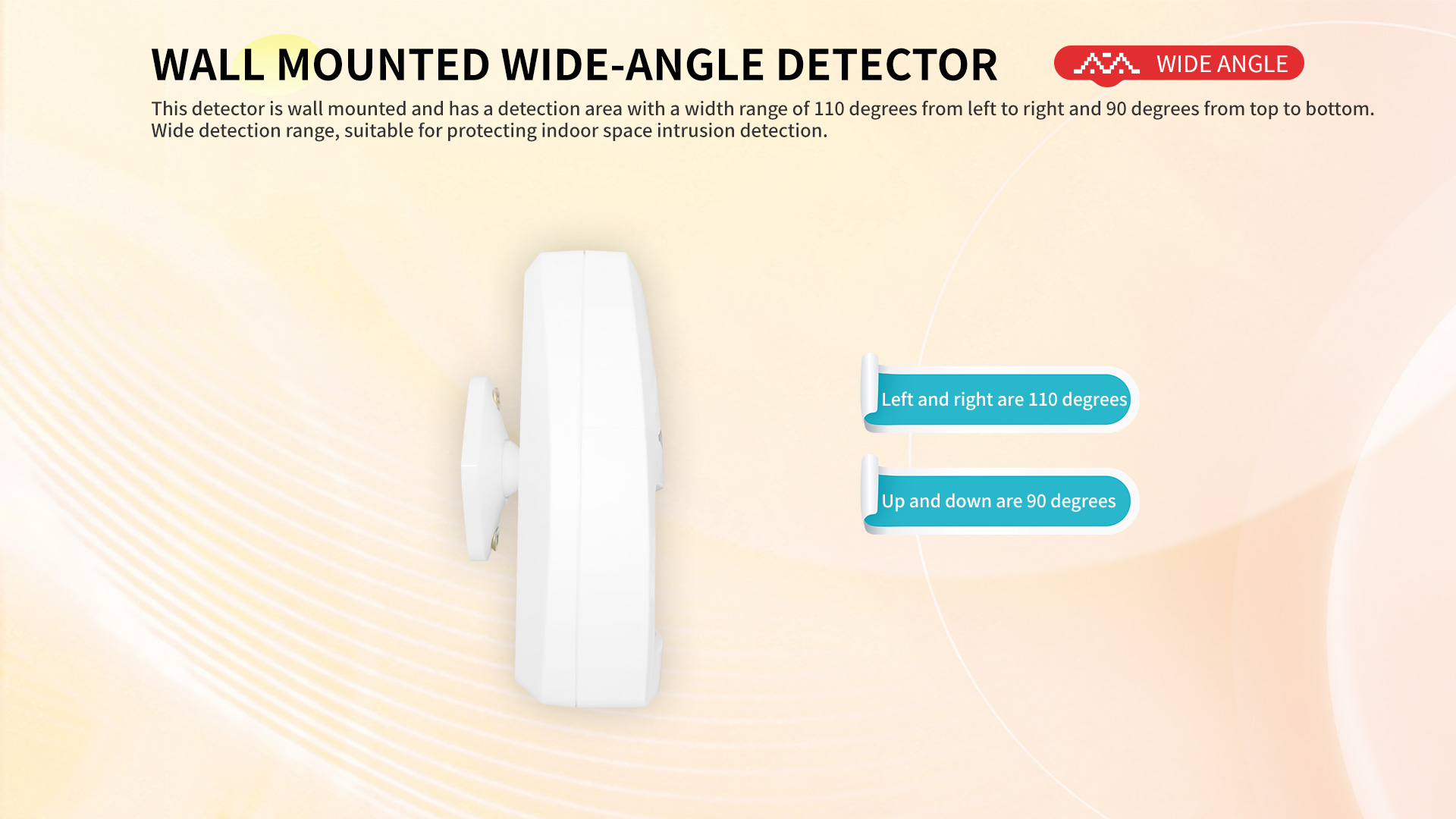

Detection angle:110°
power input:9-16VDC
installation height:1.8-2.4m
ALARM IN: Normally open NO normally closed NC optional
Anti-visible light :＞9000LUX
anti-electromagnetic interference:＞30V/m(30MHz~1GHz)
operation temperature:-10℃-+50℃
relative humidity:5%-95%RH
size:119*42*71
