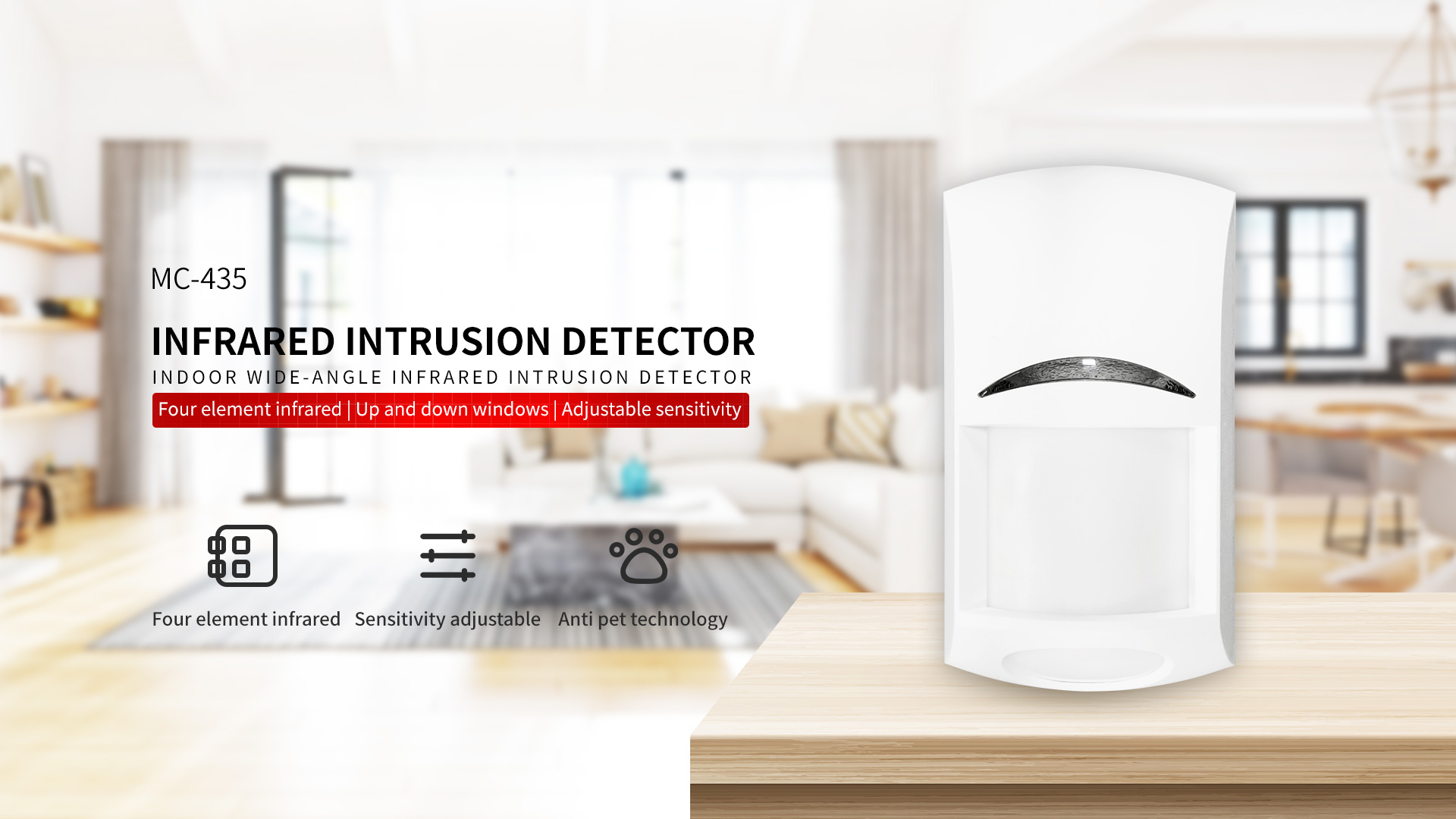

MC-435 Indoor Wide Angle Infrared Detector
Product features:

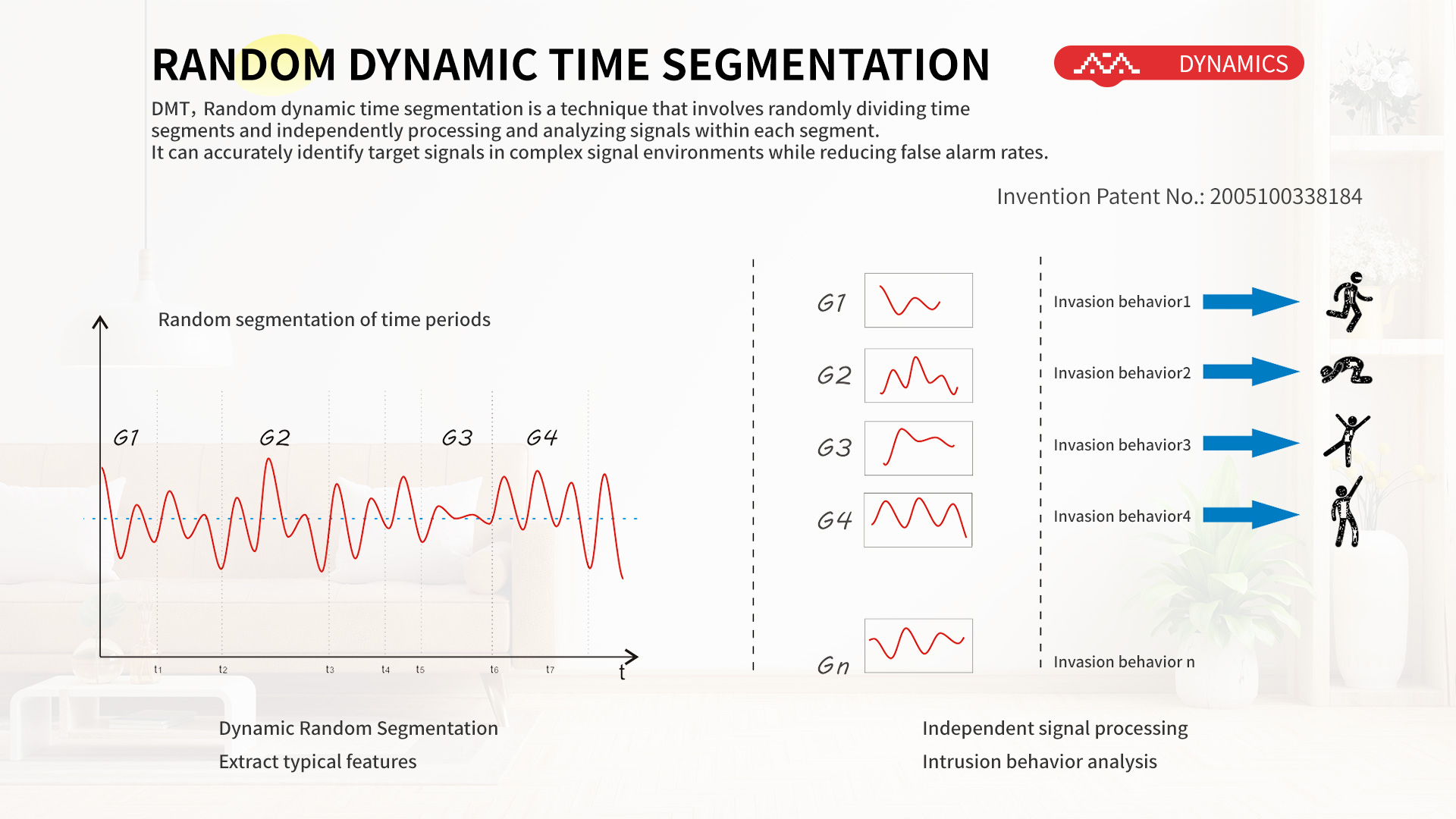

Adopting independently developed MASK chip with random dynamic time segmentation technology;
Unique quaternary infrared optical sensor;
Detection distance of 12 meters;

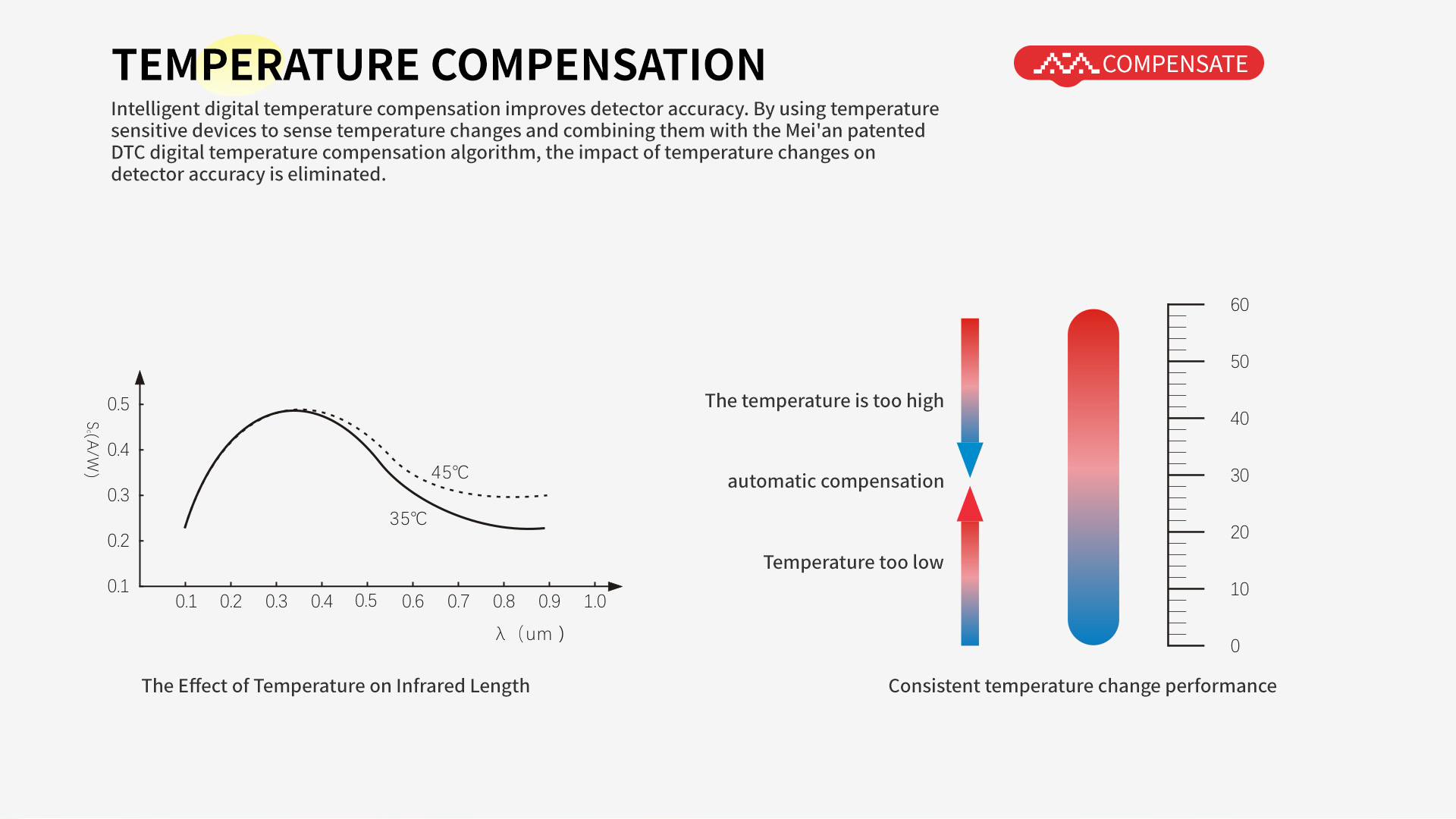

Dynamic temperature compensation;
Multiple pulse counts adjustable;
Adjustable sensitivity;
Anti environmental interference;
Free installation height (1.8m – 2.4m);
Simple design, suitable for various application scenarios such as homes, offices, and shops.
Technical parameters:
PRODUCT MODEL:MC435 Indoor Wide Angle Infrared External Detector
Detection method
Four element infrared+artificial intelligence
static current:20mA
alarm current:50mA

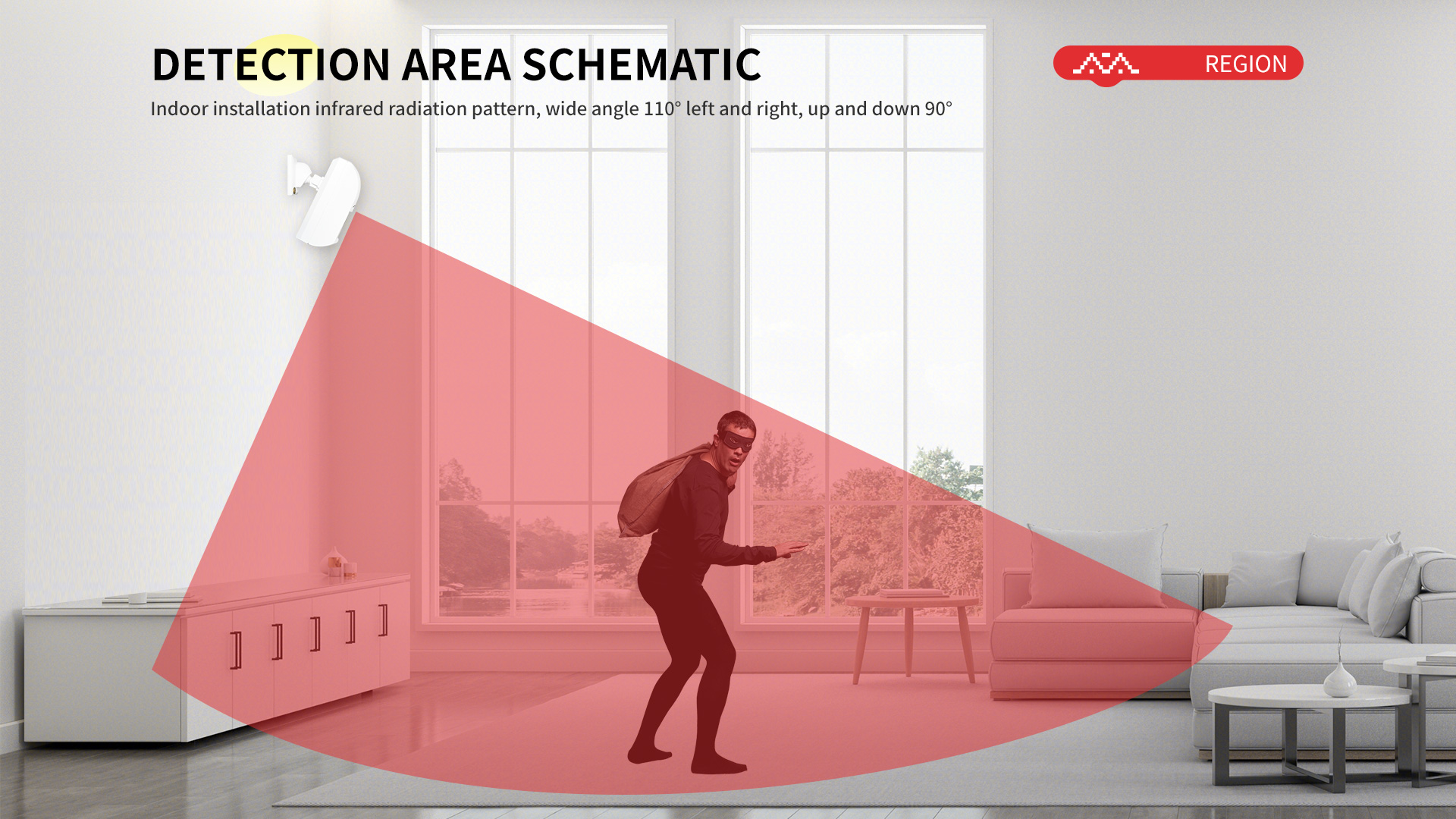

Detection area：9+5+3
Detection range:12 meters @ 25 °
Detection angle:110°
power input:9-16VDC
installation height:1.8-2.4m
ALARM IN:Normally open NO normally closed NC optional
Anti-visible light :＞9000LUX
anti-electromagnetic interference:＞30V/m(10MHz~1GHz)
operation temperature:-10℃-+50℃
relative humidity:5%-95%RH
size:100 * 40 * 60mm (excluding bracket)
